NN 2015

The Night Navigator™ 2015 is the next step in the rugged, low-maintenance, compact electro-ptical system line. It has a narrower field of view then the 2005 with an impressive 17.6° and also offers 4x digital zoom.

Specifications

Thermal Camera
Sensor Type Uncooled Long Wave Infrared (LWIR), 8-12µm
Resolution 640x480 pixels, 30fps
Field of View 17.6°
Detection Range NATO Target >3km
Day Camera
Resolution 1920x1080 pixels, 30fps
Field of View 63.7° to 2.3°
Optical Zoom 30x continuous zoom
Low Light Camera 0.0015 lux
Payload Specifications
Stabilization Gyro and video stabilization
Pan Range Continuous 360° AZ rotation
Tilt Range +/-90° elevation movement, including stow position
Weight ≤12 kg [26lbs]

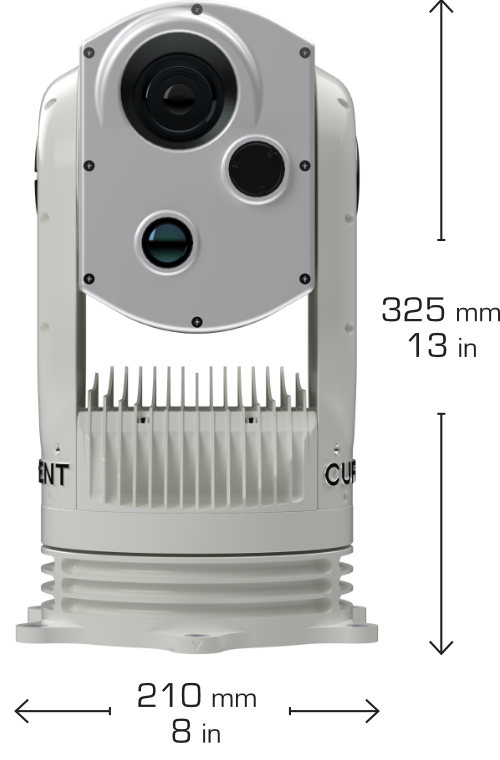

Dimensions 325mm H x 210mm W [13in H x 8in W]
System Interface
Video Streaming RTSP H.264 with Picture-in-Picture or 2 simultaneous video streams
Control Over IP network
Radar / AIS ARPA target, radar cursor, AIS target tracking over NMEA 0183 via RS422 or RS232 or Network
Features
Environmental IP67
Operational Temperature -20°C to +50°C
Control Options Video integrated into UI / Control only UI / Compact Controller / Rugged Rigid Grip / 2-Button Joystick
Third Party Interface Protocol for integration into navigation system / video management system / C2
Video Recording Network recording of two video streams on VMS or dedicated NVR
Power Requirements
Voltage 24 to 36VDC
Max. Consumption 210W
