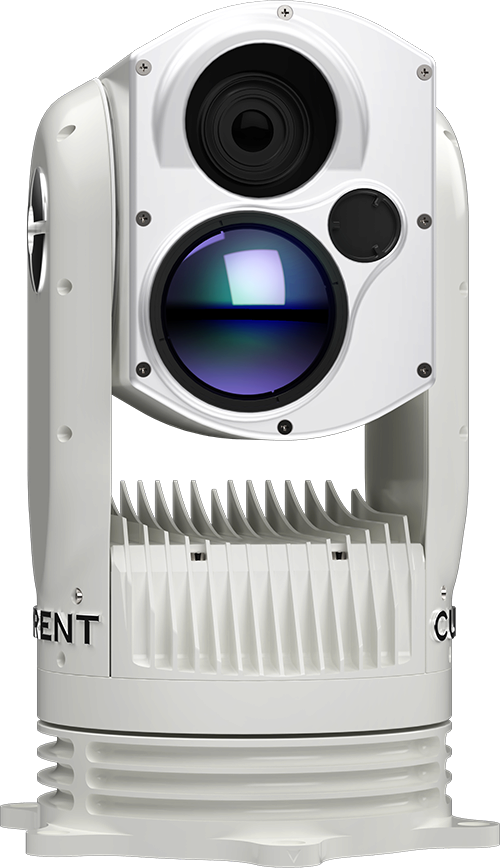

NN 2017

    The Night Navigator™ 2017 is a forward step in the rugged, low-maintenance, compact electro-optical system line. It has a narrower field of view then the 2015 with a fixed 12.4° and also offers 4x digital zoom.

    Specifications

    Thermal Camera
    Sensor Type Long Wave Infrared (LWIR), 8-12µm
    Resolution 640x480 pixels, 30fps
    Field of View 12.4°
    Digital Zoom 4x
    Detection range NATO Target >4km
    Day Camera
    Resolution 1920x1080 pixels, 30fps
    Field of View 63.7° to 2.3°
    Digital Zoom 12x continuous zoom
    Low Light Camera 0.0015 lux
    Payload Specifications
    Stabilization Gyro and video stabilization
    Pan Range Continuous 360° AZ rotation
    Tilt Range +/-90° elevation movement, including stow position
    Weight ≤12 kg [26lbs]
    Dimensions 325mm H x 210mm W [13in H x 8in W]
    System Interface
    Video Output HD-SDI
    Video Streaming RTSP H.264 with Picture-in-Picture or 2 simultaneous video streams
    Control Over IP network
    Radar / AIS ARPA target, radar cursor, AIS target tracking over NMEA 0183 via RS422 or RS232 or Network
    Features
    Environmental Designed to MIL-STD 810
    Operational Temperature -20°C to +50°C
    Control Options Video integrated into UI / Control only UI / Compact Controller / Rugged Rigid Grip / 2-Button Joystick
    Third Party Interface Protocol for integration into navigation system / video management system / C2
    Video Recording Network recording of two video streams on VMS or dedicated NVR
    Power Requirements
    Voltage 24 to 36VDC
    Max. Consumption 210W
