NN HSC

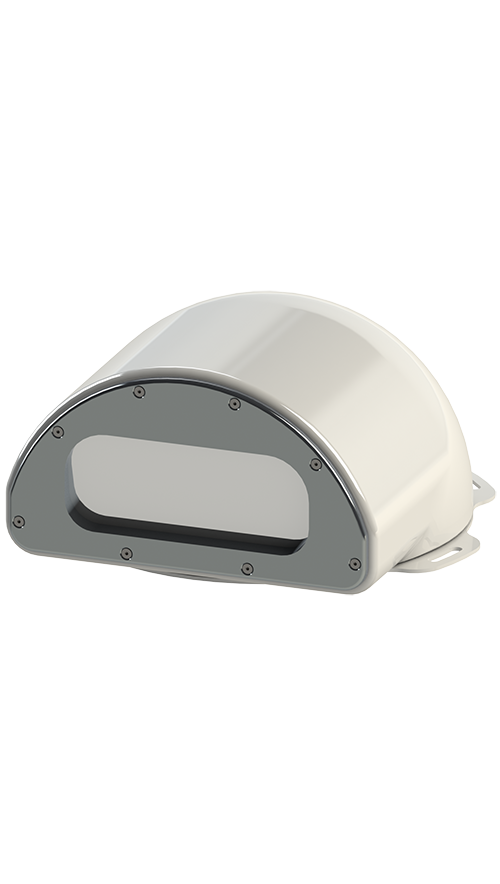

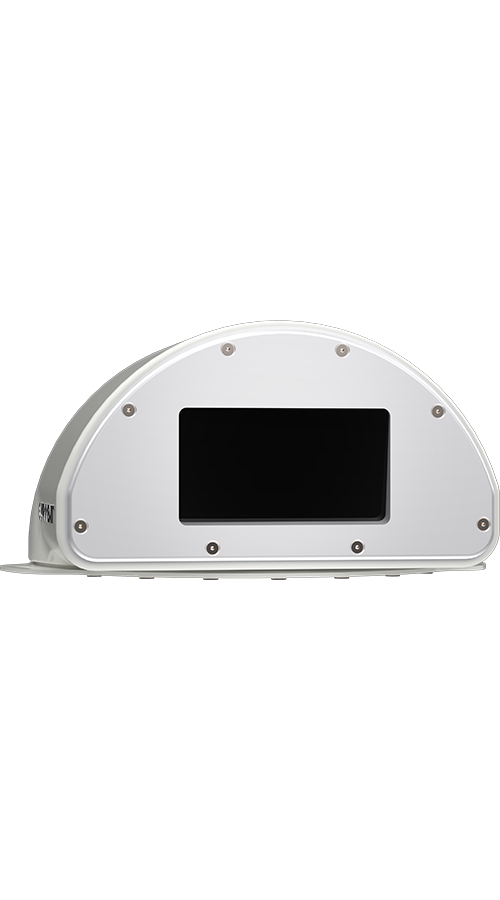

The Night Navigator™ HSC (High Speed Craft) is the Night Vision camera system certified to the IMO HSC code and Wheelmark by DNV. It replaces the Night Navigator 8540 which has been installed on hundreds of HSC since the early 2000s.
The Night Navigator HSC's compact design with no external moving parts, offers a superior InfraRed image. Its rugged and marinized design makes it low maintenance, while its quality provides detection of obstacles in the HSC navigation path improved up to longer distances.
The NN HSC includes on-screen display of lubber line, trip position, preset position, heading and more. The system performs its own self-diagnostics, evaluating various components, including internal temperature, humidity level and the pan and tilt parameters.
Specifications
| Thermal Camera | |
|---|---|
| Sensor Type | Long Wave Infrared (LWIR) |
| Resolution | 640x480 pixels |
| Lens | Athermalized Fixed Focus |
| Field of View | 22.6° |
| Payload Specifications | |
| Pan Range | +/-20° from heading |
| Tilt Range | +/-9° |
| Weight | 5.2kg [11lbs] |
| Dimensions | 166mm H x 348mm W [7in H x 14in W] |
| System Interface | |
| Video Output | DVI / HD-SDI |
| Video Streaming | IP based with included 8" Touchscreen Controller |
| Features | |
| Environmental | Certified and Compliant to IEC 60945 |
| Certification | Wheel Mark and Type Approved by DNV to IMO Resolution MSC.94(72) for High Speed Craft. DNV Certificate number: MEDB00007RZ |
| Operational Temperature | -20°C to +50°C |
| Power Requirements | |
| Voltage | 24VDC |
| Max. Consumption | 50W |
