NN 3050

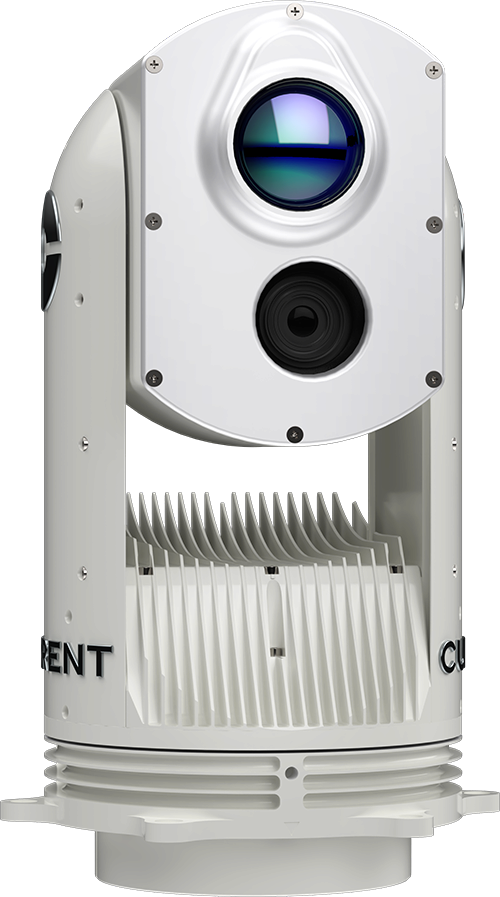

The Night Navigator™ 3050 integrates an MWIR cooled thermal imager, a high definition (HD) day camera with an impressive low light mode in a gyro-stabilized sensor platform.
Specifications
| Thermal Camera | |
|---|---|
| Sensor Type | Cooled Mid Wave Infrared (MWIR), 3-5µm |
| Resolution | 640x512 pixels, 30fps |
| Field of View | 28° to 2° |
| Digital Zoom | 4x |
| Detection range | NATO Target >14km |
| Lens f/# | 5.5 |
| Day Camera | |
| Resolution | 1920x1080 pixels, 30fps |
| Field of View | 63.7° to 2.3° |
| Digital Zoom | 12x continuous zoom |
| Low Light Camera | 0.0015 lux |
| Payload Specifications | |
| Stabilization | Gyro and video stabilization |
| Pan Range | Continuous 360° AZ rotation |
| Tilt Range | +/-90° elevation movement, including stow position |
| Weight | ≤25 kg [55lbs] |

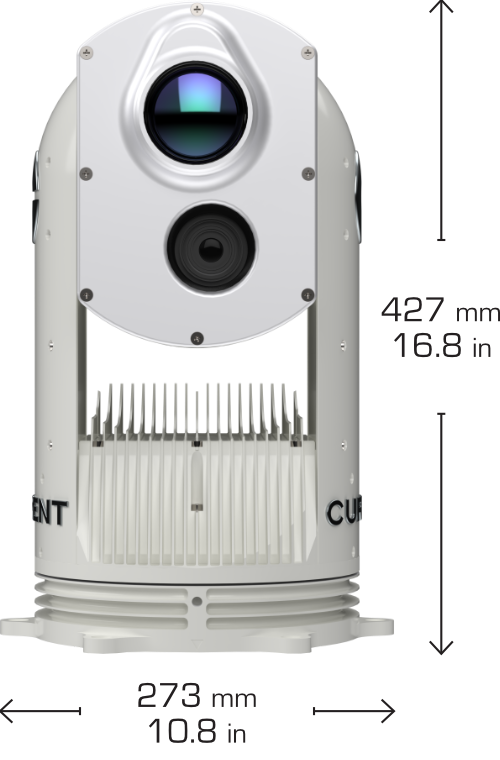

| Dimensions | 427mm H x 273mm W [17in H x 11in W] |
| System Interface | |
| Video Output | HD-SDI |
| Video Streaming | RTSP H.264 with Picture-in-Picture or 2 simultaneous video streams |
| Control | Over IP network |
| Radar / AIS | ARPA target, radar cursor, AIS target tracking over NMEA 0183 via RS422 or RS232 or Network |
| Features | |
| Environmental | Designed to MIL-STD 810 |
| Operational Temperature | -20°C to +50°C |
| Video Tracking | Included |
| Control Options | Video integrated into UI / Control only UI / Compact Controller / Rugged Rigid Grip / 2-Button Joystick |
| Third Party Interface | Protocol for integration into navigation system / video management system / C2 |
| Video Recording | Network recording of two video streams on VMS or dedicated DVR |
| Power Requirements | |
| Voltage | 24 to 36VDC |
| Max. Consumption | 320W |
