NN 3055

The Night Navigator™ 3055 integrates a superior MWIR cooled thermal imager and a high-definition day camera with low light mode in a gyro-stabilized sensor platform.

Specifications

Thermal Camera
Sensor Type Cooled Mid Wave Infrared (MWIR), 3-5µm
Resolution 640x512 pixels, 30fps
Field of View 32.4° to 1.8°
Optical Zoom 18x
Detection Range NATO Target >15km
Lens f/# 5.5
Day Camera
Resolution 1920x1080 pixels, 30fps
Field of View 63.7° to 2.3°
Optical Zoom 30x continuous zoom
Low Light Camera 0.0015 lux
Payload Specifications
Stabilization Gyro and video stabilization
Pan Range Continuous 360° AZ rotation
Tilt Range +/-90° elevation movement, including stow position
Weight ≤25 kg [55lbs]

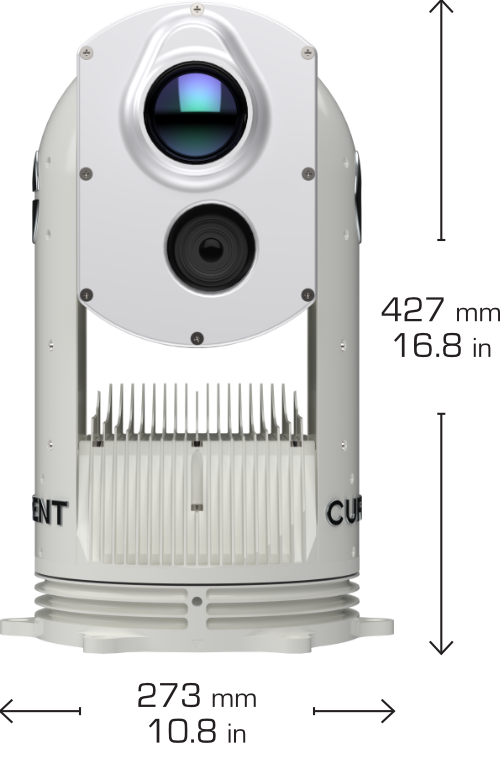

Dimensions 427mm H x 273mm W [17in H x 11in W]
System Interface
Video Streaming RTSP H.264 with Picture-in-Picture or 2 simultaneous video streams
Control Over IP network
Radar / AIS ARPA target, radar cursor, AIS target tracking over NMEA 0183 via RS422 or RS232 or Network
Features
Environmental Designed to MIL-STD 810
Operational Temperature -20°C to +50°C
Video Tracking Included
Control Options Video integrated into UI / Control only UI / Compact Controller / Rugged Rigid Grip / 2-Button Joystick
Third Party Interface Protocol for integration into navigation system / video management system / C2
Video Recording Network recording of two video streams on VMS or dedicated DVR
Power Requirements
Voltage 24 to 36VDC
Max. Consumption 320W
