NN 3057

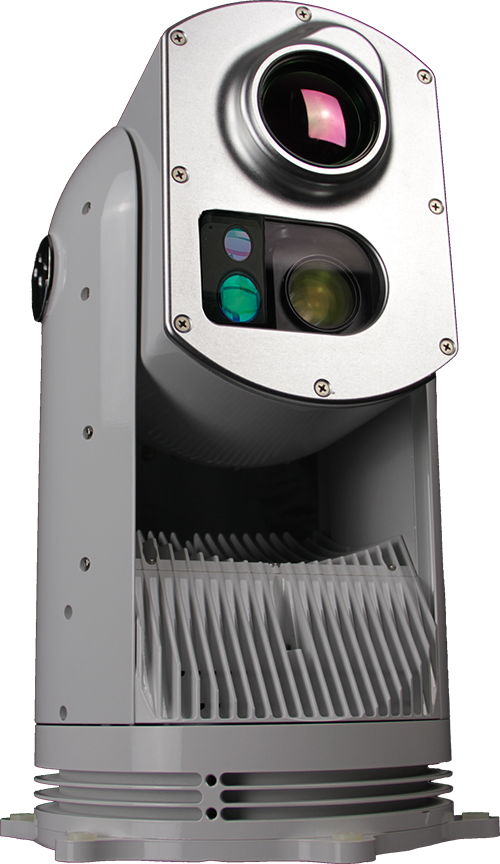

    The Night Navigator™ 3057 integrates an MWIR cooled thermal imager and a laser range-finder, along with a high-definition day camera with low-light mode. All of this is mounted in a gyro-stabilized sensor platform.

    Specifications

    Thermal Camera
    Sensor Type Cooled Mid Wave Infrared (MWIR), 3-5µm
    Resolution 640x512 pixels, 30fps
    Field of View 32.4° to 1.8°
    Digital Zoom 4x
    Detection range NATO Target >15km
    Lens f/# 5.5
    Day Camera
    Resolution 1920x1080 pixels, 30fps
    Field of View 63.7° to 2.3°
    Digital Zoom 12x continuous zoom
    Low Light Camera 0.0015 lux
    Laser Range Finder
    Laser Safety Class 1
    Range 32km max./ 12km NATO target
    Payload Specifications
    Stabilization Gyro and video stabilization
    Pan Range Continuous 360° AZ rotation
    Tilt Range +/-90° elevation movement, including stow position
    Weight ≤25 kg [55lbs]

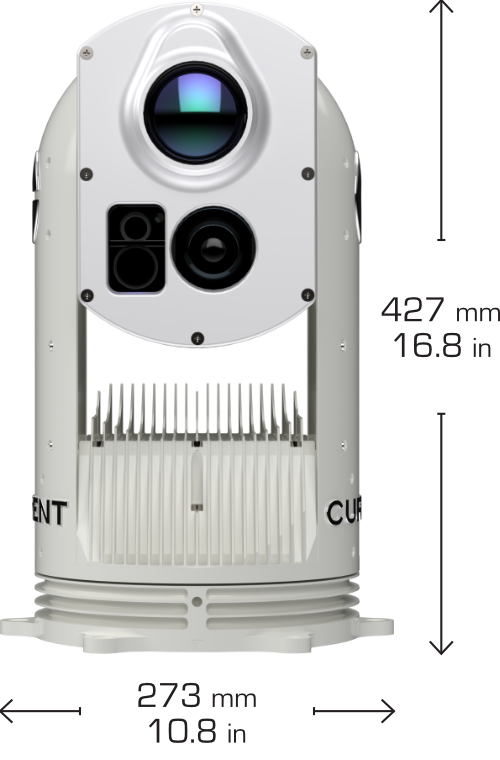

    Dimensions 427mm H x 273mm W [17in H x 11in W]
    System Interface
    Video Output HD-SDI
    Video Streaming RTSP H.264 with Picture-in-Picture or 2 simultaneous video streams
    Control Over IP network
    Radar / AIS ARPA target, radar cursor, AIS target tracking over NMEA 0183 via RS422 or RS232 or Network
    Features
    Environmental Designed to MIL-STD 810
    Operational Temperature -20°C to +50°C
    Video Tracking Included
    Control Options Video integrated into UI / Control only UI / Compact Controller / Rugged Rigid Grip / 2-Button Joystick
    Third Party Interface Protocol for integration into navigation system / video management system / C2
    Video Recording Network recording of two video streams on VMS or dedicated DVR
    Power Requirements
    Voltage 24 to 36VDC
    Max. Consumption 320W
