NN 4040

 The Night Navigator™ 4040 integrates an HD LWIR uncooled thermal imager, a high-definition day camera with low-light mode in a gyro-stabilized sensor platform. Additionally, the NN4040 offers the option to integrate an image intensified camera.


Thermal Camera
Sensor Type HD Long Wave Infrared (LWIR), 8-12µm
Resolution 1024x768 pixels, 30fps
Field of View 41° to 6.6°
Optical Zoom 6x
Detection range NATO Target >10km
Day Camera
Resolution 1920x1080 pixels, 30fps
Field of View 63.7° to 2.3°
Optical Zoom 30x continuous zoom
Low Light Camera 0.0015 lux
Payload Specifications
Stabilization Gyro and video stabilization
Pan Range Continuous 360° AZ rotation
Tilt Range +/-90° elevation movement, including stow position
Weight 32 kg [71lbs]

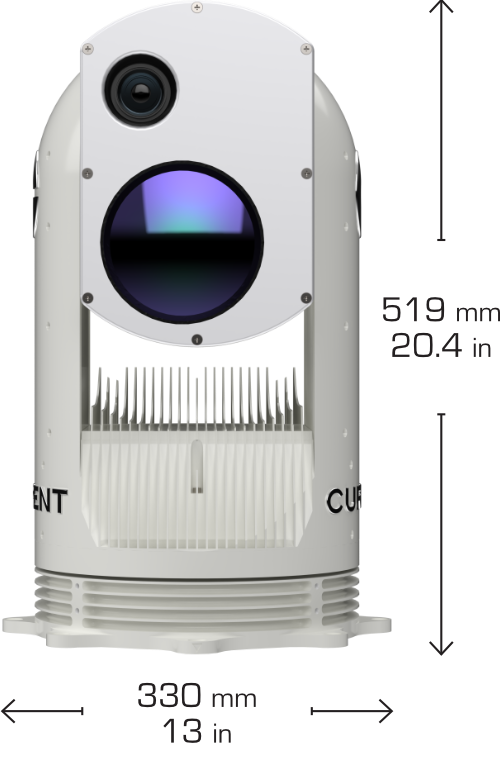

Dimensions 519mm H x 330mm W [20in H x 13in W]
System Interface
Video Output HD-SDI
Video Streaming RTSP H.264 with Picture-in-Picture or 2 simultaneous video streams
Control Over IP network
Radar / AIS ARPA target, radar cursor, AIS target tracking over NMEA 0183 via RS422 or RS232 or Network
Environmental Designed to MIL-STD 810
Operational Temperature -20°C to +50°C
Video Tracking Optional
Night Vision Optional - Image Intensified
Control Options Video integrated into UI / Control only UI / Compact Controller / Rugged Rigid Grip / 2-Button Joystick
Third Party Interface Protocol for integration into navigation system / video management system / C2
Video Recording Network recording of two video streams on VMS or dedicated DVR
Power Requirements
Voltage 24 to 36VDC
Max. Consumption 330W
