| Thermal Camera | |
|---|---|
| Spectral Range | 3-5µm cooled |
| Sensor Type | HD MWIR (Mid Wave Infrared) |
| Resolution | 1280x720 pixels |
| Frame Rate | 30Hz |
| Field of View | 40.2° to 2.4° |
| Continuous Optical Zoom | 17x |
| Digital Zoom | 4x |
| F Stop | f/4 |
| IR Detection Range - Human (1.8x0.5 m) | 9.5 km |
| IR Detection Range - NATO (2.3x2.3 m) | 23 km |
| HD Day / Low Light Camera | |
| Resolution | 1920x1080 pixels |
| Field of View | 64° to 2.4° |
| Continuous Optical Zoom | 30x |
| Continuous Digital Zoom | 12x |
| Low Light sensitivity in black and white mode | 0.00008 lux |
| Payload Specifications | |
| Weight | 27-32 kg [60-70 lbs] |

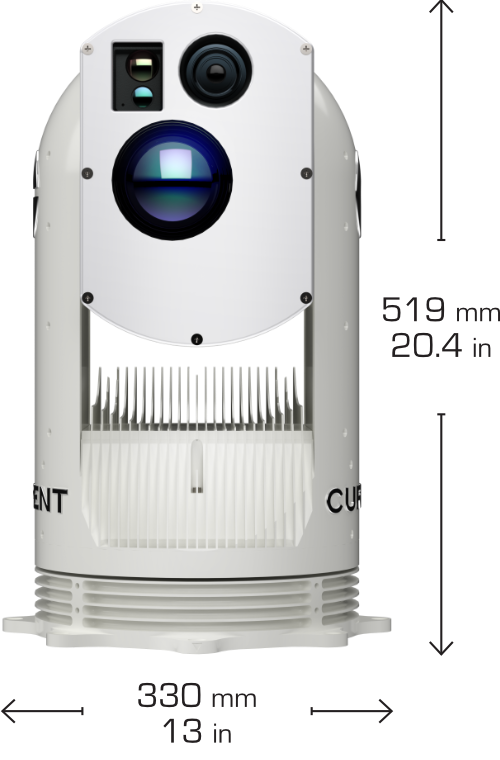

| Dimensions | 519 mm H x 330 mm W [20.4 in H x 13 in W] |
| Power Requirements | |
| Voltage | 24 to 36 VDC |
| Max Consumption | 330 W |
| Video Tracking | |
| Video Tracking | Included |
| Laser Range Finder | |
| Laser Safety Class | 1 |
| Precision | 0.5 to 1.5 m |
| Measuring Range NATO Target | 10,000 m |
| Maximum Measuring Range | 32,000 m |
