NN 8085

    The Night Navigator™ 8085 integrates an HD MWIR cooled thermal imager and a high-definition day camera with low-light mode and the option to add a SWIR.

    Specifications

    Thermal Camera
    Sensor Type HD Cooled Mid Wave Infrared (MWIR), 3-5µm
    Resolution 1280x720 pixels, 30fps
    Field of View 14.5° to 1.2°
    Digital Zoom 4x
    Detection range NATO Target >40km
    Lens f/# 4
    Day Camera
    Resolution 1920x1080 pixels, 30fps
    Field of View 58.1° to 2.3°
    Digital Zoom 12x continuous zoom
    Low Light Camera 0.00008 lux
    Optional Configurations
    LRF 39km max. rang / 16km NATO target
    4K Day 3240x2160 pixels
    SWIR Short Wave Infrared, 0.9-1.7µm
    Payload Specifications
    Stabilization Gyro and video stabilization
    Pan Range Continuous 360° AZ rotation
    Tilt Range +/-90° elevation movement, including stow position
    Weight <70kg [155lbs]

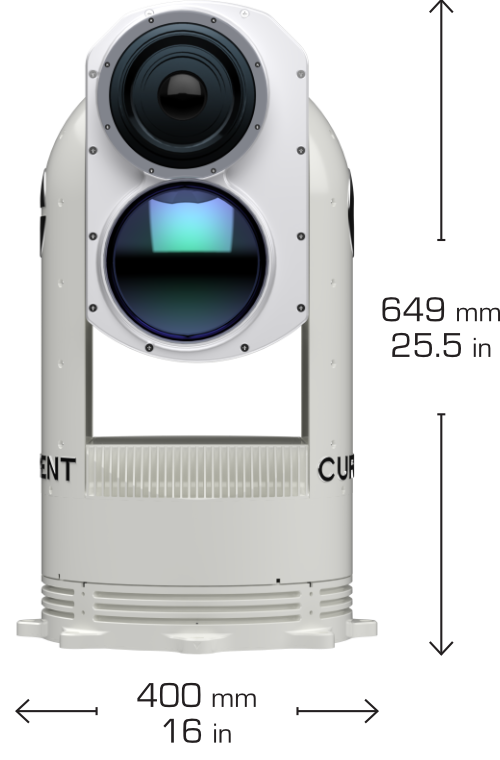

    Dimensions 650mm H x 425 mm W [26in H x 17in W]
    System Interface
    Video Output HD-SDI
    Video Streaming RTSP H.264 with Picture-in-Picture or 2 simultaneous video streams
    Control Over IP network
    Radar / AIS ARPA target, radar cursor, AIS target tracking over NMEA 0183 via RS422 or RS232 or Network
    Features
    Environmental Designed to MIL-STD 810
    Operational Temperature -20°C to +50°C
    Video Tracking Included
    Control Options Video integrated into UI / Control only UI / Compact Controller / Rugged Rigid Grip / 2-Button Joystick
    Third Party Interface Protocol for integration into navigation system / video management system / C2
    Video Recording Network recording of two video streams on VMS or dedicated DVR
    Power Requirements
    Voltage 24 to 36VDC
    Max. Consumption 420W
