| Thermal Camera | |
|---|---|
| Spectral Range | 3-5µm cooled |
| Sensor Type | MWIR (Mid Wave Infrared) |
| Resolution | 640x512 pixels |
| Frame Rate | 30Hz |
| Field of View | 16.5° to 0.9° |
| Continuous Optical Zoom | 17x |
| Digital Zoom | 4x |
| F Stop | f/4 |
| IR Detection Range - Human (1.8x0.5 m) | 12.6 km |
| IR Detection Range - NATO (2.3x2.3 m) | 30.7 km |
| HD Day / Low Light Camera | |
| Resolution | 1920x1080 pixels |
| Field of View | 58.1° to 2.3° |
| Continuous Optical Zoom | 30x |
| Continuous Digital Zoom | 12x |
| Low Light sensitivity in black and white mode | 0.00008 lux |
| Payload Specifications | |
| Weight | 56-65 kg [123-143 lbs] |

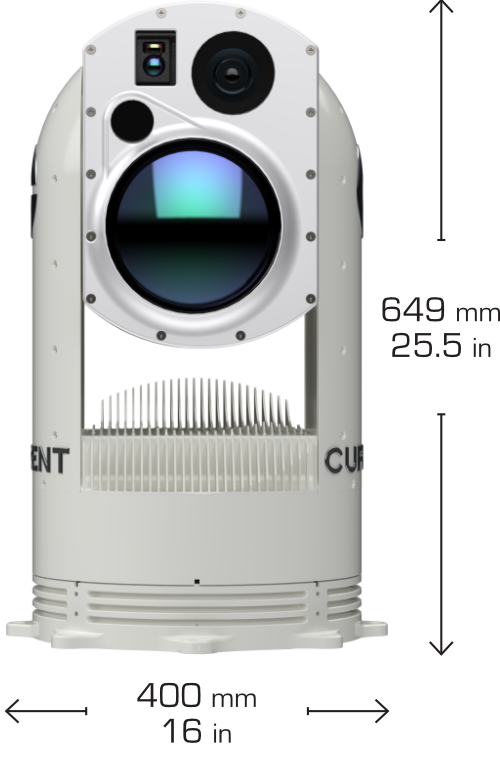

| Dimensions | 649 mm H x 400 mm W [25.5 in H x 16 in W] |
| Power Requirements | |
| Voltage | 24 to 36 VDC |
| Max Consumption | 500 W |
| Video Tracking | |
| Video Tracking | Included |
| Laser Range Finder | |
| Laser Safety Class | 1 |
| Precision | < 1 m |
| Measuring Range NATO Target | 2,400 m |
| Maximum Measuring Range | 5,000 m |
| Laser Dazzler | |
| Laser Power | 5 W |
| Wavelength | 520 nm (green) |
